Coaxial Optical Fiber Sensor with Multiple Core for Switch Amplifier M3 M4 M6 Diffuse-Reflective Precise Detection(GRC-310)

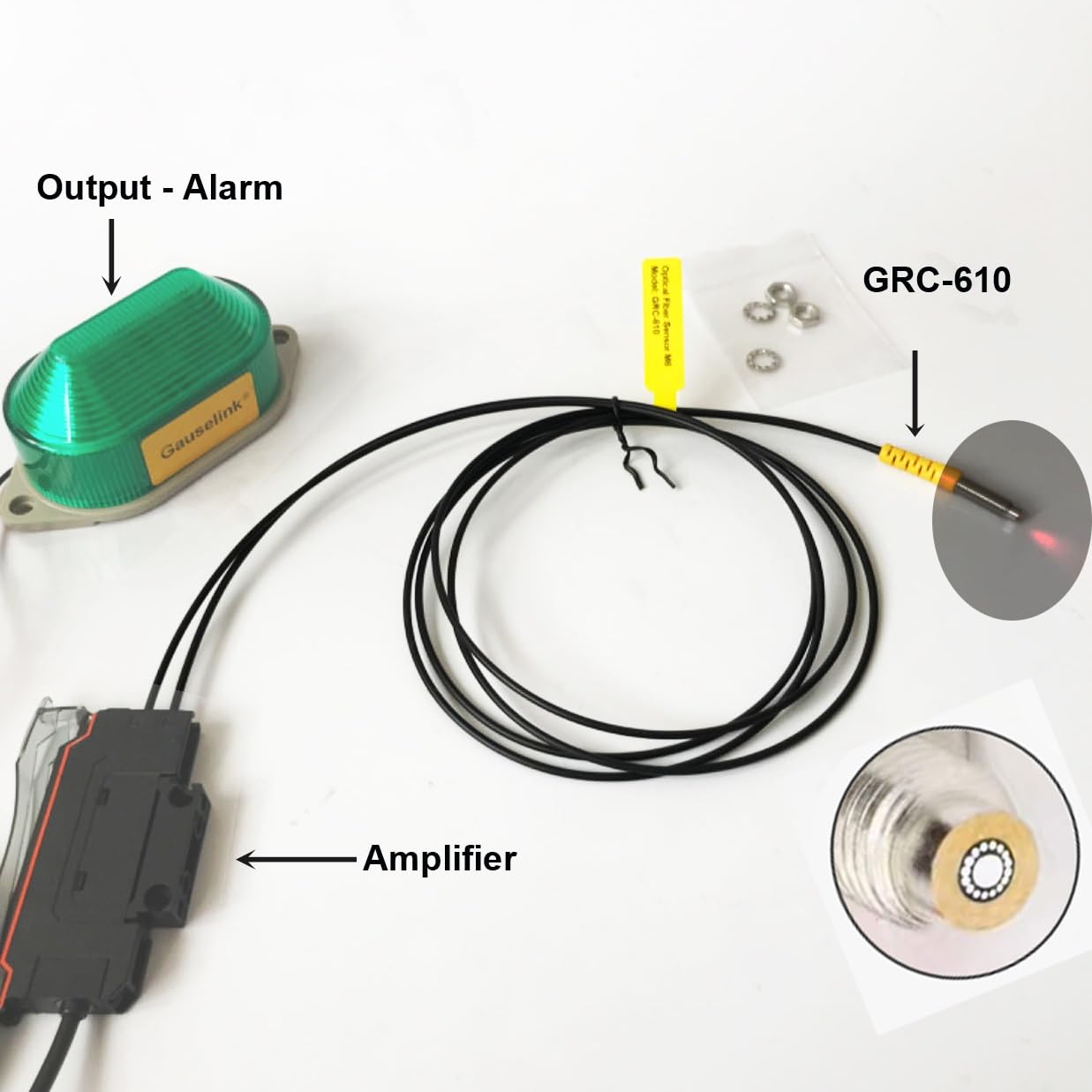

Sensors1. Product Parameters- Product Name: Optical Fiber Sensor with Coaxial Multiple Cores- Type: Diffuse Reflective- Material of optical fiber: Plastic- Material of optical fiber probe: Stainless Steel- Ambient Temperature: -35 - 50Note: Color and Decoration may vary from those shown.2. Attractive Features2.1 Coaxial multiple cores which highly increase the precision and swiftness of detection on approaching objects from different direction (left right up down).GRC-310 (M3) and GRC-410 (M4) have 9 cores separately and GRC-610 (M6) has 16 cores which receive the reflective light from different directions, compared with single core receiver.2.2 Strong anti-interference ability2.3 High transmittance inner core contributes to low transmission loss.2.4 Easy installation. Tiny size. It can go through very narrow space and small tube to detect small object.3. Drawings and dimensionsNote: As measured by hand, dimensions have small deviation.4. Compatibility with AmplifiersThe optical fiber sensors are also compatible with various amplifiers in the market. Amplifier not included and sold separately.5. Installation Instructions5.1 Connection to AmplifierThe optical fiber cable with single core is inserted into the hole of amplifier that is emitting light.The cable with multiple cores is inserted into the hole that is receiving light.Refer to diagram below. Amplifier sold separately at this store.6. Applicable FieldsThe optical fiber sensors are widely used in various fields including but not limited to:(1) Security Equipment (Attention: Don't use it for human body protection).(2) Machinery (3) CNC machining equipment(4) Goods Security Inspection(5) Automation(6) Electro-Mechanical MachineryThe outstanding feature is that working with amplifier (sold separately) it can detect transparent objects (e.g. glass cup, glass bottle, transparent plastic box) which traditional switches cannot.Customers' Application Cases:See the picture below.The optical fiber sensor (circled in yellow) is detecting transparent bottles of liquid on running production line.The optical fiber sensor is monitoring the circular movement of object at laboratory.The sensor is detecting the edge of white paper sheet on box-making machine.The sensor is detecing work piece on punching machine.Demonstrated Model in Video of this link:GRC-610, working with amplifier (E3X-SV11) with output to alarm.7. Other Items that you may be interested on7.1 Amplifier7.2 Color Identification Amplifier7.3 Focus LensIf object is very small and detection distance is very short, focus lens are available and sold separately.Click the picture below to choose.==========Hign-concerned Chemical : NoneMaterial : PlasticCertification : NoneSwitch Type : SwitchModel Number : GRC-310/410/610Item Type : SWITCHESIs Smart Device : NoOrigin : Mainland
